Revision Notes App for Solid Edge

Introduction

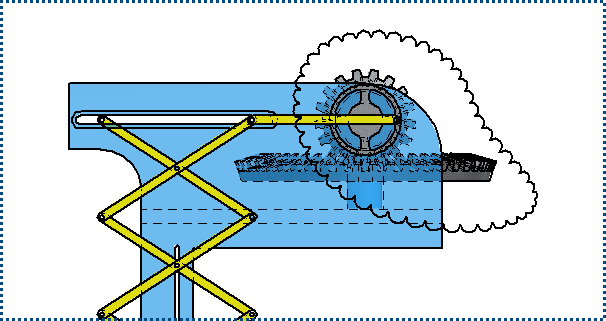

The Revision Notes app creates a revision cloud on Solid Edge drawings.




Easy to Use

  • Select a curve

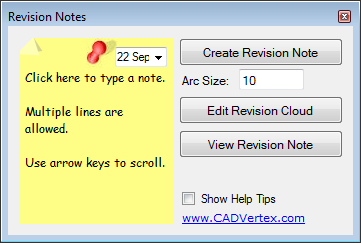

  • Open the dialog
  • Specify arc size
  • Type in Notes
  • Add a date from the calendar
  • Create the cloud

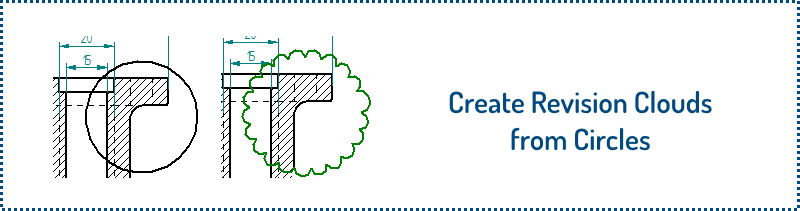

    • Create Revision Cloud from Circles




    Did you know?

    "Revision clouds are fully associative with their underlying geometry and can be edited."
